How a Pin Tumbler Lock Mechanism Works: A Visual Introduction
A pin tumbler lock mechanism is built around a simple idea: small internal parts must align before the plug can rotate. The system looks compact from the outside, but inside it is a coordinated set of pins, springs, chambers, a plug, and a keyway.
For beginners, the challenge is that most of this movement is hidden. You can insert a key and see the outside result, but you cannot easily see what changed inside. That is why a transparent learning kit can be so helpful.
The basic parts
In a pin tumbler-style mechanism, the key enters through the keyway. As the key moves into place, its profile raises internal pins to different heights. Springs press down from above, keeping the pins in contact with the key and the internal chambers.
When the correct key profile is present, the pin positions align at the shear line, allowing the plug to turn. If the positions do not align, the plug remains blocked.
This is a mechanical relationship, not magic. The key shape, pin height, spring pressure, and plug movement all work together.
Why visual learning helps
A transparent body makes these relationships easier to follow. Instead of imagining what happens inside, learners can observe the parts moving in real time. They can see how small changes affect alignment and why the system needs precision.

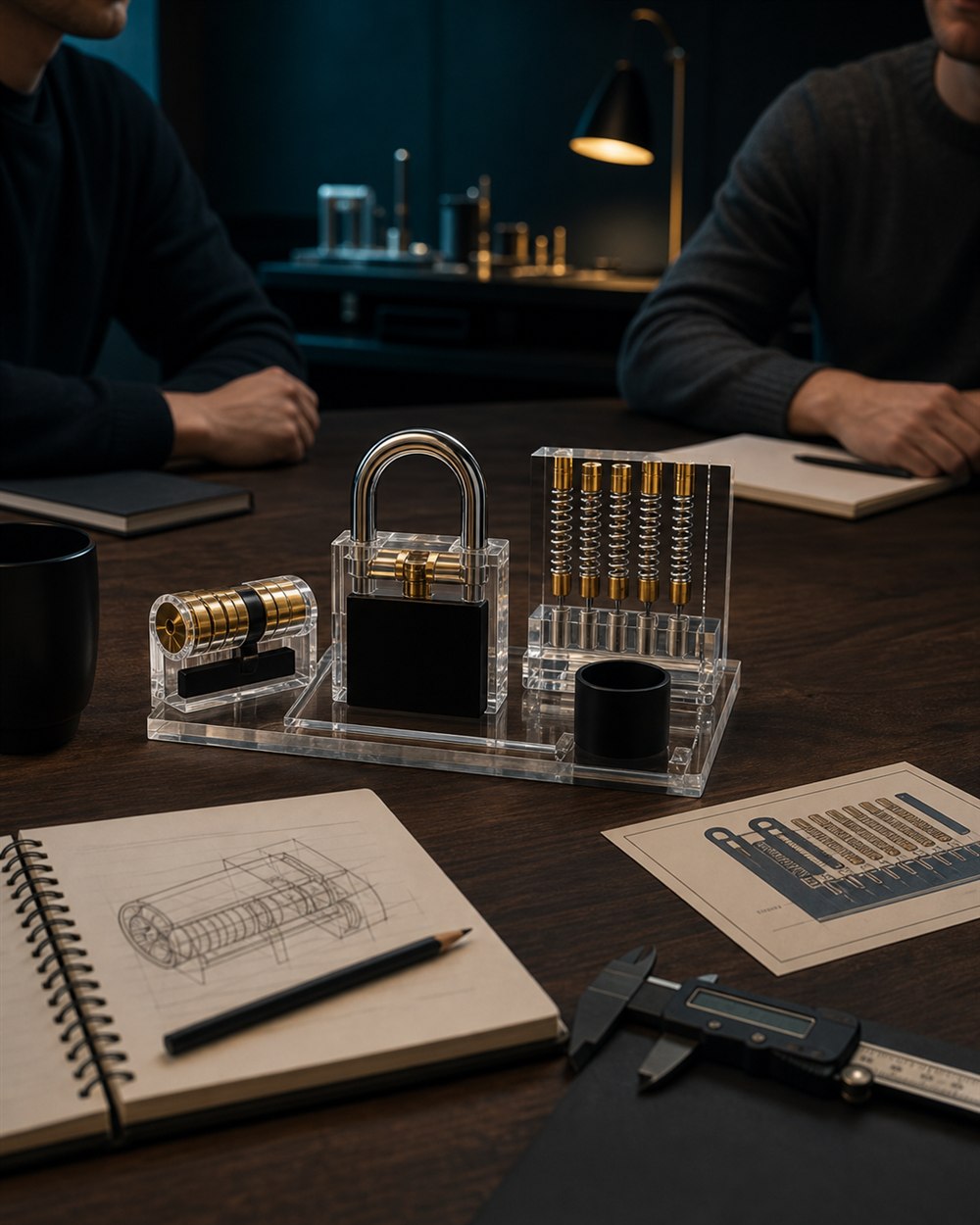

ClearLock is designed for this kind of observation. It helps learners understand the structure before moving into covered practice or more advanced classroom exercises.
A responsible learning approach
Understanding a mechanism should always happen within clear boundaries. Use educational tools only with training locks, your own locks, or locks you have explicit permission to examine.
When used responsibly, a visual kit can turn a confusing hidden system into a calm, understandable mechanical lesson.
